GD and T Interview Questions and Solutions

GD and T symbols assist to appropriately describe phase geometry in engineering drawings and assist make sure the standard of the manufactured phase. GD and T additionally assist keep up a correspondence design and meeting necessities in a drawing. Thus, if you’re eager about a mechanical engineering occupation, you will have to achieve experience in GD and T. On this article, now we have collated a listing of the highest GD and T interview questions, that will help you crack your interview whilst making use of for the publish of a mechanical engineer.

1. What is supposed through GD and T?

Geometric Size and Tolerance (GD and T) is a procedure for describing engineering tolerances. GD and T is an overly very important a part of a mechanical product design. GD and T outline the stage of precision and accuracy wanted at the managed characteristic of a component. It’s used to outline the nominal (theoretically highest) geometry of assemblies and portions , to outline the allowable variation in shape and conceivable measurement of person options, and to outline the allowable variation between options.

2. Describe the way you pass about calculating feeds and speeds and the way you resolve reduce depths and reduce widths for a specific operation?

Every one could have a distinct resolution to this query. We have now a complete article on how one can optimize Reduce Intensity and Reduce Width for 2D machining. Alternatively, when you’re the use of 3-D profiling the foundations trade. CAM developer Robert Grzesek has written a marvelous visitor publish for us on how to make a choice your stepover for 3-D paintings.

3. Why is GD and T Vital?

GD and T is necessary for the next causes:

• GD and T can cut back or get rid of inspection of a few options if huge portions are being made.
• It saves cash
• It supplies “bonus” tolerance
• Guarantees interchangeability of mating portions on the meeting
• Guarantees measurement, design, and tolerance necessities as they relate to the real serve as.
• Supplies uniformity
• This is a common figuring out of symbols as a substitute of phrases.

4. What’s Shape Keep an eye on in GD and T?

Shape tolerances are appropriate to person (unmarried) parts or parts of unmarried options. Shape tolerances don’t seem to be associated with datum.

• Flatness
• Straightness
• Cylindricity
• Circularity

5. Give an explanation for various kinds of suits.

Suits may also be divided into 3 teams: 1) clearance are compatible, 2) interference are compatible, and three) transition are compatible.

Interference are compatible: In this kind of are compatible, the dimensions of the mating portions is predefined to happen interference between those portions. Right here, the outlet tolerance zone is totally beneath the shaft tolerance zone.

Clearance are compatible: This are compatible is known through the prevalence of clearance between the 2 similar portions.

Transition are compatible: This is a comptonization between the interface and clearance are compatible. On this case of are compatible, the tolerance zone of the outlet and shaft overlaps.

6. Give an explanation for necessary laws that will have to be saved in thoughts whilst designing castings?

The next issues must be saved in thoughts whilst designing castings:

• Surprising adjustments within the thickness must be have shyed away from in any respect prices.
• Stay the part thickness uniform up to conceivable.
• Stay the simplicity intact whilst designing castings
• Use a curved form to toughen the strain dealing with of the forged.
• Steer clear of massive flat surfaces as true huge areas are problematic to create.

7. What’s common coupling?

This is without doubt one of the maximum commonplace GD and T interview questions. Common coupling is used to attach two shafts with axes which might be susceptible to one another. It is composed of a couple of hinges, related through a pass shaft.

8. Give an explanation for why you could possibly use pneumatics?

Pneumatic techniques are a lot less expensive than different streams, this is hydraulic techniques. It might transfer quicker and the oil does now not leak in the event that they increase a leak.

9. Give an explanation for mechanical refrigeration.

Mechanical refrigeration is the method wherein warmth is taken clear of a specific location through the use of a synthetic heat-exchange device. The refrigeration device may also be magnetic, cyclic, non-cyclic, or thermoelectric in nature in response to the applying for which the refrigeration is wanted.

10. Give an explanation for how sliding touch is assessed?

Sliding touch may also be categorised relying at the thickness of quite a lot of movie bearings.

11. Give an explanation for how a piston head is created?

A Piston head may also be designed in response to the next issues:

• The crown will have to have power required to soak up the explosion power throughout the cylinder.
• You’ll take Grashof’s system to calculate the thickness of the top.

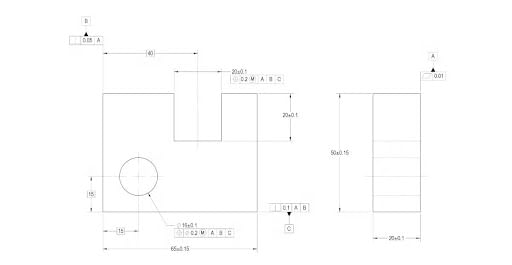

12. Learn about the next determine, and provide an explanation for what’s the characteristic keep an eye on body for the outlet.

The principle parts of the characteristic keep an eye on body are:

• The 3 datums A, B and C

• The outlet measurement measurement Ø16
• The outlet measurement tolerance +/- 0.1
• Place Modifier
• Place tolerance 0.2
• Elementary Dimensions 15 x 15 to Datums B and C

13. Give an explanation for how you’ll be able to gadget a hollow?

You want to watch out sufficient to put your drill bit in order that it’s not more than 0.1 away at any level from its true heart.

14. Give an explanation for how perpendicular a hollow may also be in response to the image above?

The perpendicularity is constructed into the placement tolerance – requiring one to actually have a perpendicularity to datum A of Ø0.2 because the tolerance zone must be perpendicular to A primary. Additionally, you’ll be able to additionally say that it’s possible you’ll use an finish mill and round interpolate the outlet to realize higher keep an eye on over the site and the diameter.

15. Give an explanation for what’s Unilateral Tolerance?

A unilateral tolerance is the type of tolerance during which variation is authorized simplest in a single route from the required measurement.

16. Give an explanation for what’s bilateral tolerance:

A bilateral tolerance is the only during which variation is authorized in each instructions from the measurement specified.

17. Give an explanation for the situations during which you are going to use GD and T:

GD and T can be utilized within the following situations:

• When phase options are very important for interchangeability or to a serve as.
• When practical gaging is important.
• When datum references are important to ensure consistency between the designs.
• When usual tolerance or interpretation isn’t already implied.
• When it permits a better option of machining processes to be made for the manufacturing of a specific phase.

18. What is supposed through the Terminology evaluate of GD and T?

• Least Subject material Situation (LMC): It is a situation the place a measurement characteristic contains the smallest amount of subject matter within the said limits of measurement, that’s the biggest hollow and the smallest shaft.
• Most Subject material Situation (MMC): It is a situation the place a measurement characteristic contains essentially the most quantity of subject matter within the said limits of measurement, that’s the smallest hollow and the biggest shaft.
• Tolerance: The variation between LMC and MMC limits of a person measurement.
• Allowance: The variation between the MMC of 2 mating portions (most interference and minimal clearance)
• Elementary Size: Nominal measurement from which tolerances are acquired.

19. Give an explanation for the time period Tolerance in GD and T?

Tolerance is the full quantity wherein a specific measurement is authorized to change. It’s the distinction between the minimal and most limits. They’re 3 of tolerances: varieties:

• Bilateral Tolerance
• Unilateral Tolerance
• Geometric Tolerance

20. What are the boundaries of measurement of GD and T?

A variation in shape is enabled between the MMC and the LMC. The true measurement of the characteristic at any cross-section must be throughout the boundary measurement. No portion of the characteristic may also be provide outdoor an excellent shape barrier on the MMC.

21. Give an explanation for the that means of Datum in GD and T?

A theoretically precise level, aircraft, or axis derived from the actual geometric counterpart of a specific datum characteristic. A datum is the starting place from which the geometric or location traits of options of a component are established.

22. Give an explanation for the time period Geometric Tolerance?

Geometric tolerance is the overall time period carried out to the class of tolerances used to keep an eye on profile, shape, location, orientation, and runout.

23. What’s the distinction between flatness and straightness in GT and D

Each flatness and straightness are forms of shape keep an eye on tolerances. Flatness controls the differences in a flat floor without reference to any datum characteristic. Straightness controls a situation the place all parts of an axis or a floor characteristic are to be had in a immediately line.

24. What’s the distinction between cylindricity and circularity in GD and T?

Each circularity and cylindricity are one of those shape keep an eye on tolerance. Cylindricity controls the roundness of a round characteristic in a three-dimensional tolerance zone. Circularity controls the roundness of a round characteristic in a 2-dimensional tolerance zone.

25. Why are profile keep an eye on tolerances utilized in GD and T?

Profile of Line and Profile of Floor keep an eye on tolerances are used to keep an eye on the complicated profile of a characteristic. For instance, as proven above, phase profile can’t be managed the use of linear dimensions.

26. Why are LMC and MMC modifiers utilized in GD and T?

LMC and MMC are used to supply bonus tolerance to the characteristic of a component.

27. What’s the tolerance zone and GD and T perpendicularity tolerance zone?

Perpendicularity is intently related to all of the different orientation GD and T symbols when referred to as on an axis. The tolerance zone now refers back to the cylindrical and uniformity envelope of a central axis Parallelism and perpendicularity and may also be referred to as out on cylindrical pins and holes, regularly with MMC added. Every time two surfaces require a continuing 90° perspective, Perpendicularity is efficacious. Vital sq. edges and flange bearings typically reference it. Perpendicularity could also be generally referred to as out at the corners of cylinders the place the flat backside must be perpendicular with the curved facets.

28. How are you able to measure perpendicularity tolerance?

Perpendicularity may also be measured the use of a top gauge, similar to flatness, then again, the gauge (or phase) is locked to a 90° datum to measure how perpendicular the outside if truth be told is. All the floor must be measured if this can be a flat characteristic. To make certain that a characteristic or phase is axially perpendicular, MMC is maximum regularly referred to as out on axis perpendicularity to permit simple dimension with a gauge. This allows it to be designed for both a good (pin) or unfavorable (hollow) characteristic and will be mindful an advantage tolerance.

29. What does the letter F stand for in GD and T?

The letter “F” stands for “loose state.” This image signifies a deformation past measurement tolerance or geometric tolerance beneath a loose state.

30. Give an explanation for the time period overall run out

Overall runout is not anything however a composite tolerance that controls the orientation, location, and cylindricity of the entire floor concurrently. It does so through declaring a datum axis and rotating the phase through 360 levels. Any valleys and peaks at the floor are noticed with appreciate to the appropriate overall runout tolerance zone.
